Excavator Cylinders, Medium Pressure

This kind of durable medium-pressure cylinder is designed for compact excavator with max. pressure of 280kgf/cm^2 and operating temperature of -20℃～100 ℃ (for cold area: -40℃～90℃)

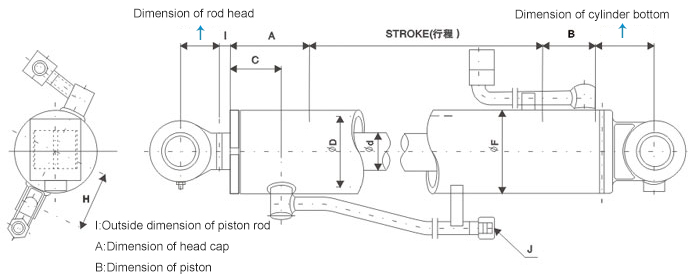

D	d	F	H	A		C	B	I	J	trip(biggest）
				No buffer	A buffer
70	45、50	86	83	80	125	75	70	25	M26×1.5	730
75	45、50	93	86	85	130	80	75	25	M26×1.5	900
80	45、50	99	89	85	130	80	80	25	M26×1.5	900
85	50、55	105	92	85	130	80	85	25	M26×1.5	900
90	55	111	95	85	130	80	90	25	M26×1.5	1150
	60			95	135
95	60、65	117	98	95	135	85	95	25	M26×1.5 M30×2	1150
100	60、65	124	102	95	135	85	95	25	M26×1.5 M30×2	1150
105	65、70	131	105	95	135	85	95	25	M26×1.5 M30×2	1150
110	65、70	136	108	95	135	85	100	25	M26×1.5 M30×2	1350
115	65、70	142	111	95	135	90	105	25	M26×1.5 M30×2	1350
120	70、75、80	148	114	95	135	90	110	25	M26×1.5 M30×2	1350
125	70、75、80	155	117	95	135	90	120	25	M26×1.5 M30×2	1350

Note
(1) External diameter E and piston rod diameter D will not comply with the above standard due to different applications.
